GETAC
X500 RUGGED SERVER

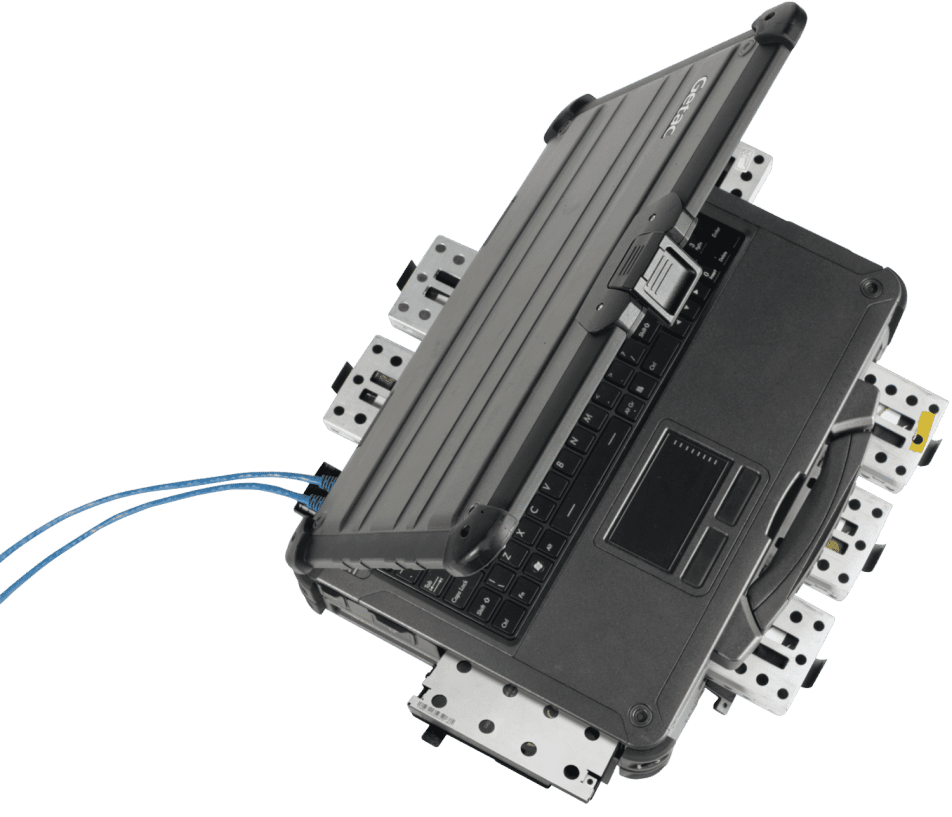

The briefcase-size Getac X500 rugged mobile server is a commercial off-the-shelf, high-performance mobile rugged server designed for quick deployment and reliability.

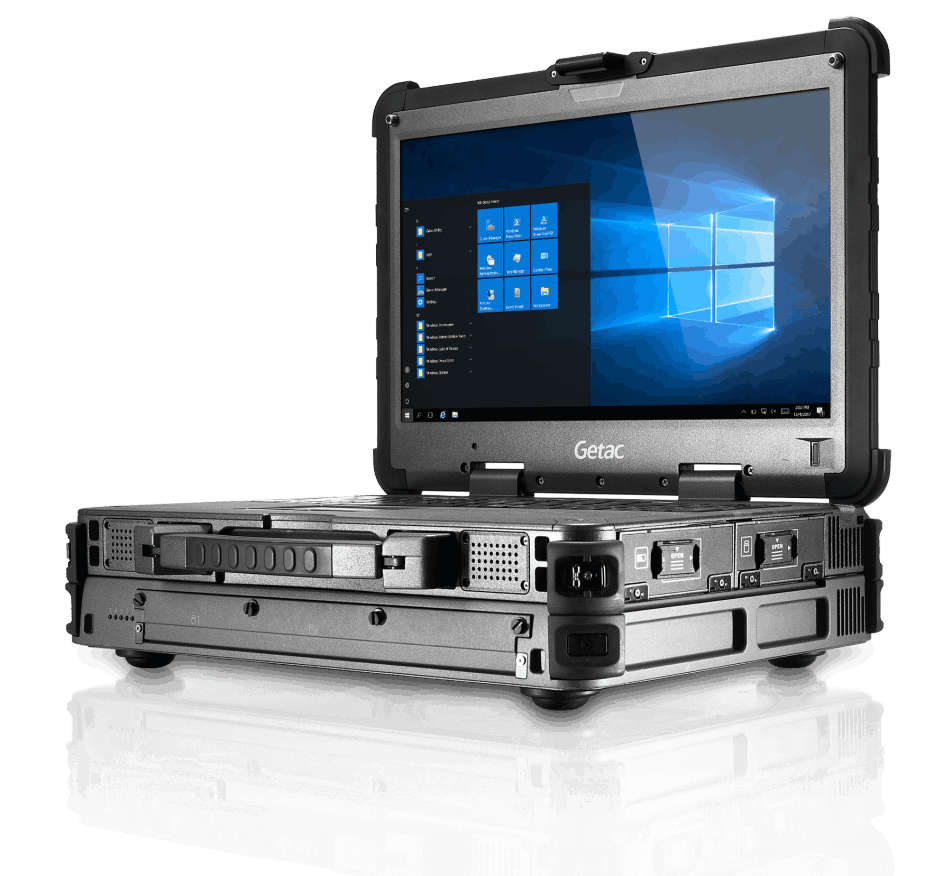

GETAC X500 SERVER

GETAC X500 SERVER FEATURES

RUGGED RAID SERVER. NOTEBOOK PORTABILITY.

Based on the X500 ultra rugged computer, the briefcase-size X500 Rugged Server is a commercial off-the-shelf (COTS), high-performance, mobile rugged server that provides quick deployment and can be easily transported into emergency, disaster and temporary set-up environments.

5TB OF STORAGE / RAID 0, 1, 5

DATA The X500 Rugged Server has a hardware RAID (redundant array of independent disks) controller that can improve performance and protect your data. With up to 5 terabytes of storage, the X500 Server can be configured for RAID level 0, 1, 5.

GETAC X500 SERVER

WINDOWS SERVER 2019

The X500 Rugged Server is pre-loaded with Windows Server 2016 providing powerful and flexible server application management.

LARGE SUNLIGHT READABLE FULL HD DISPLAY

The X500 Rugged Server features a massive 15.6 inch Full HD 1080p widescreen display powered by an NVIDIA® GeForce®GTX1050 4GB discrete graphic controller delivering crystal-clear high def with incredible responsiveness.

Every X500 Rugged Server also features an advanced QuadraClear® display. Getac's QuadraClear solution reduces the sunlight's reflectivity and provides a more effective contrast rate than other displays, while still maintaining the battery life you need in the field.

The QuadraClear display is powered by LEDs that provide an energy efficient display that is mercury-free, durable and consistent in brightness over time.

X500 SERVER TECHNICAL SPECIFICATIONS

Operating System
Windows Server 2019

Pointing Device

Touchpad
- Glide touchpad with 2 buttons

Mobile Computing Platform
Intel® Xeon® Processor E3-1505M v6 3.0GHz,
Max. 4.0GHz - 8MB Intel® Smart Cache

Expansion Slots
- Smart card reader x 1
- ExpressCard/54 x 1
- PCMCIA Type II x 1

VGA Controller
-Intel® HD Graphics P630
-NVIDIA® GeForce® GTX1050 4GB discrete          graphics controller
-Optional: NVIDIA® Quadro® P2000 4GB                discrete graphics controller

Multimedia Bay
- 2nd storage: HDD 500GB
- Optional 2nd storage:
   1TB HDD / 512GB SSD / 1TB SSD
- Optional 2nd battery ii:
   10.8V, 9240mAh, 99.8Wh

Display
15.6" TFT LCD FHD (1920 x 1080)
Protection film
1,000 nits QuadraClear® sunlight readable display

X Bay
- Optional: SATA HDD / SSD 3TB maximum             expandable to 5TB
- Disk management: RAID 0, RAID 1, RAID 5

Storage & Memory

32GB DDR4 / 32GB DDR4 ECC
Optional: 64GB DDR4 / 64GB DDR4 ECC

500GB SATA HDD / 512GB SATA SSD
Optional: 1TB SATA HDD / 1TB SATA SSD

Disk management: RAID 0 / RAID 1 i

I/O Interface
Audio input (Mini-jack) x 1
Audio output (Mini-jack) x 1
DC in Jack x 1
USB 3.2 Gen 1 Type-A x 4
LAN (RJ45) x 2
HDMI 1.4 x 1
External VGA (15-pin; D-sub) x 1
Serial port (9-pin; D-sub) x 2

Keyboard
LED backlit membrane keyboard with integrated numeric keypad
Optional: LED backlit rubber keyboard

Communication Interface
10/100/1000 base-T Ethernet
Optional: Dedicated GPS

Security Features
TPM 2.0
Kensington lock
Intel® vPro™ Technology
Smart card reader

Rugged Features
MIL-STD-810H certified
IP65 certified
Vibration & drop resistant
Full magnesium alloy case
Shock-protected removable HDD

Power
AC adapter (150W, 100-240VAC, 50/60Hz)
Li-ion smart battery (10.8V, 9240mAh, 99.8Wh)
Optional: Multimedia bay 2nd Li-ion smart battery (10.8V, 9240mAh, 99.8Wh)

Environmental Specifications
Temperature v:
- Operating: -20°C to 55°C / -4°F to 131°F
- Storage: -40°C to 71°C / -40°F to 160°F
Humidity:
- 95% RH, non-condensing

Dimension (W x D x H) & Weight
410 x 320 x 65mm (16.1" x 12.6" x 2.5")
5.2kg (11.4lbs)

Dimension measured with expansion unit.
410 x 320 x 119mm (16.1" x 12.6" x 4.6") iv
8.6kg (18.9lbs)

Multimedia Bay
2nd storage: HDD 500GB
Optional 2nd storage: 1TB HDD / 512GB SSD / 1TB SSD
Optional 2nd battery ii: 10.8V, 9240mAh, 99.8Wh

Accessories
Battery (10.8V, 9240mAh, 99.8Wh)
AC adapter (150W, 100-240VAC)
Optional:
Backpack
Battery (10.8V, 9240mAh, 99.8Wh)
Multimedia bay 2nd Storage
Multimedia bay 2nd battery (10.8V, 9240mAh, 99.8Wh)
Multi-Bay charger (Dual-Bay)
AC adapter (150W, 100-240VAC)
Office dock AC adapter (150W, 100-240VAC)
Protection film
Spare SSD kit

Bumper-to-Bumper Warranty
Bumper-to-Bumper is your hassle-free guarantee. That means you can depend on us to have your unit back in service within days.

Standard
5 years Bumper-to-Bumper
