INDUSTRIAL XMC

Explore Our Range Of Industrial XMC, Specifically Designed For Use In Harsh Industrial Environments, Including Manufacturing Automation, Oil and Gas Exploration & Other Industrial Applications.

Switched Mezzanine Card standard providing high-speed, switched interconnect protocols on the existing, widely deployed CMC (Common Mezzanine Card) IEEE P1386 form factor.

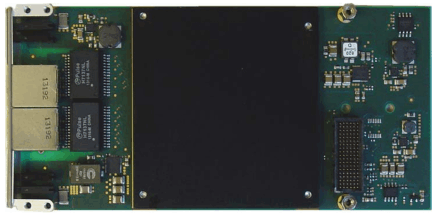

Network: TXMC887
Dual Channel 10 Gigabit Ethernet Interface
Two channel Ethernet interface based on Dual Port Intel X540 10 Gbit/s Ethernet Controller.
Full duplex.
16Mbit serial flash memory connected to Ethernet controller.
x8 PCI Express compliant Interface.
IPMI resource: FRU hardware definition information stored in on-board EEPROM.
Network connection via RJ45.
Status LEDs.
Operating temperature 0°C to +55°C
CONTACT US FOR MORE DETAILS

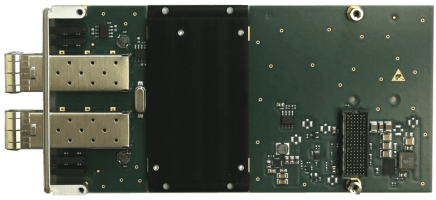

Network: TXMC888
Dual Channel SFP+ 10Gb Ethernet Interface
Dual Port Intel 82599ES 10 Gigabit Ethernet controller providing SFI Interfaces.
x8 PCI Express (Base Specification 2.0) compliant interface conforming to ANSI/VITA 42.3;.
Two SFP+ Cages.
10GBase-CU (SFP+ Direct Attach, twinax), SFPwire SFP+ Active Optical Cable, 10GBase-SR/SW / 1000Base-SX, 10GBase-LR/LW / 1000Base-LX, 1000Base-T.
1 Mbit serial flash memory for Boot ROM, 128 Kbit EEPROM storing configuration data,
Operating temperature 0°C to +70°C
CONTACT US FOR MORE DETAILS
